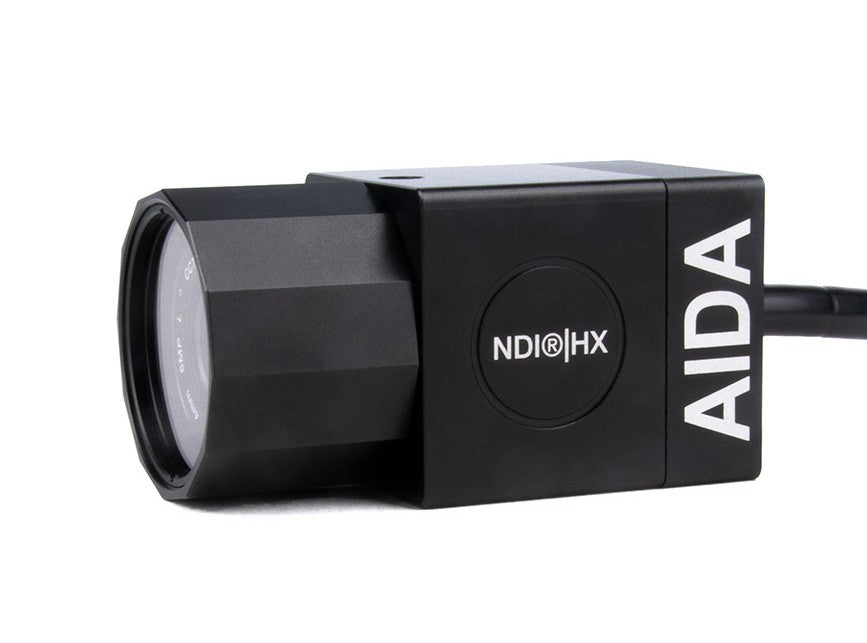

AIDA HD-NDI-IP67 Full-HD NDI HX2 IP POV Camera
AIDA HD-NDI-IP67 Full-HD NDI HX2 IP POV Camera
Verfügbarkeit für Abholungen konnte nicht geladen werden
Quick Specs
- NDI 5 Capable Camera
- FHD Streaming: 1080p, 1080i and 720p
- 30 cm I/O Cable: 12VDC, RJ45 & USB(settings)
- IP67 Rated: Dust and Moisture Free
- Dimensions: 78mm x 41mm x 41mm ; .454 g
IP67 rated for any adventure!
The camera’s rated IP67, which allows it to be free from dust and moisture. You can even submerge the camera up to 1M for up to 30 minutes.
30 cm Weatherpoof I/O cable
The breakout cable attached to the HD-NDI-IP67 is weatherproof. This cable protects the communication from the camera to its RJ45 and 12VDC connections.
Simultaneous IP Streaming
The camera is capable of simultaneously streaming NDI®|HX, SRT, RTSP and RTMP. We like to think of it as the Swiss-Army knife in the outdoor streaming world.
DETAILED SPECIFICATIONS
Video
Image Sensor
1/3” Progressive CMOS
Sensor Size
5.346mm x 3.003mm (16.9)
Effective Pixels
- Horizontal: 1920,
- Vertical: 1080
Pixel Size
2.75 ?m (H) x 2.75 ?m (V)
Resolution
1080p, 1080i, 720p
Resolution Rate
1080 60p/59.94/50p/30p/29.97p/25p
24p
1080 60i/59.94i/50i
720 60p/59.94p/50p
Output
IP (NDI|HX/SRT/RTMP/RTSP)
Color Space
4:2:2 (YCbCr) 10bit
Min Illumination
0.2Lux (day), 0.1Lux (Night)
White Balance
Auto & Manual (9000 - 11,000 K)
LENS
STANDARD
IP Protocol
UDP|IP, RTSP|RTMP, SRT, NDI|HX
PHYSICAL
Camera Control Protocol:
VISCA Over IP
Operation Temp
32°F - 104°F

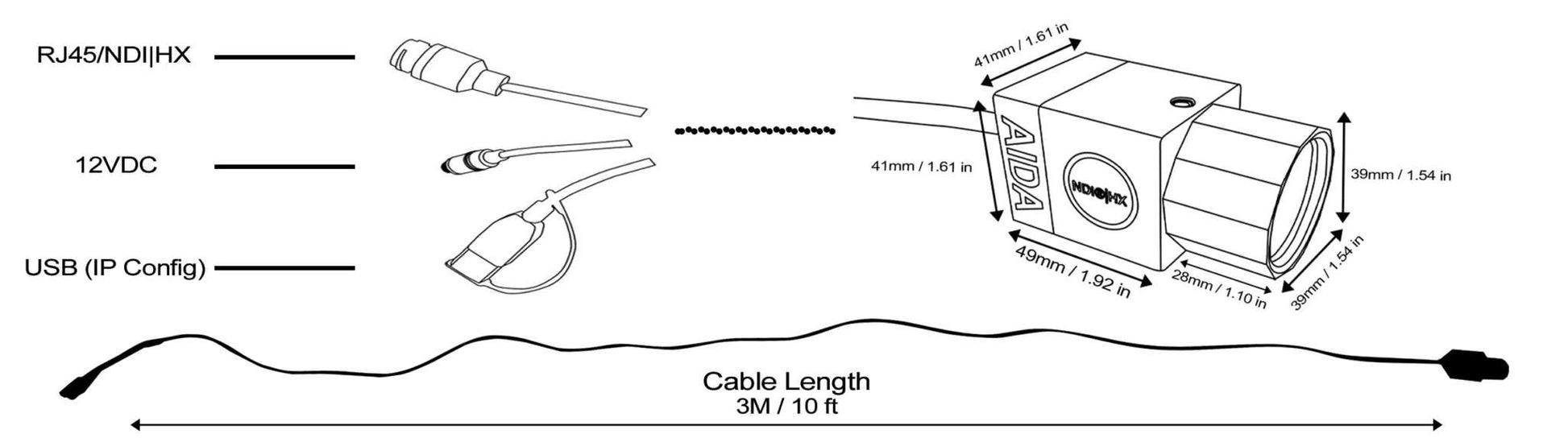

Dimension
78mm x 41mm x 41mm
(with default WP cap)
Weight 454g
(with default WP cap)
Power
12VDC (+9 - +15VDC) (PoE Adapter Included)
