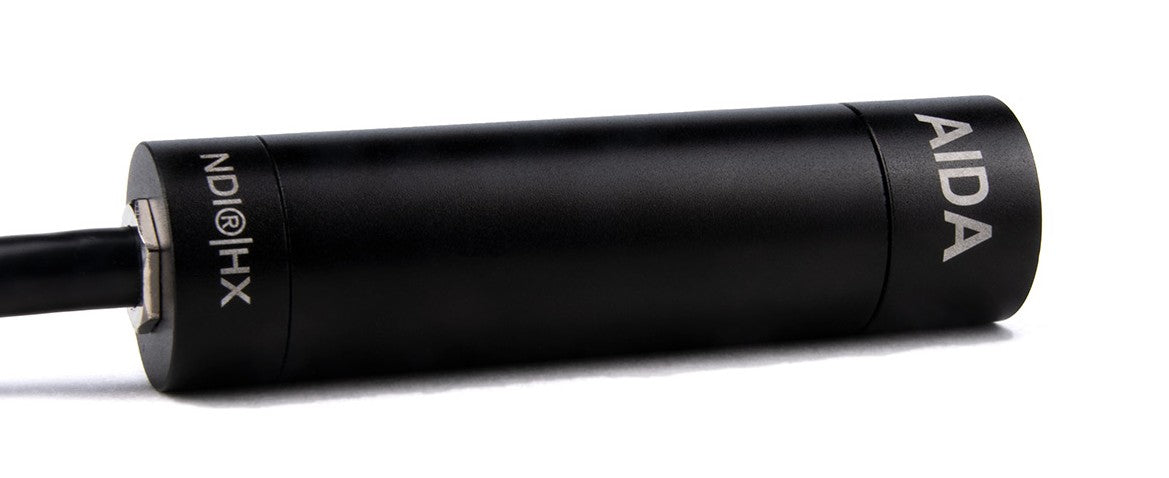

AIDA HD-NDI-MINI Full-HD NDI Weatherproof Camera
AIDA HD-NDI-MINI Full-HD NDI Weatherproof Camera
Verfügbarkeit für Abholungen konnte nicht geladen werden
The smallest NDI|HX lipstick Camera to date!
It really doesn’t get any smaller then this. Introducing the most discreet, NDI|HX camera AIDA has to offer. With its weatherproof barrel design, the HD-NDI-MINI is well protected against dust and moisture. Packed with a progressive CMOS sensor, this little camera can output 1080 60p video through your standard IP protocols, SRT, and most importantly, NDI|HX. With a tripod mount located on the bottom of the camera, there is no place the MINI can’t go.
No-Hassle Integration
Of course the HD-NDI-MINI comes pre-loaded with its NDI|HX license key. Would it be any different?
Weatherproof Protected
The camera’s rated IP67, which allows it to be free from dust and moisture. You can even submerge the camera up to 1M for up to 30 minutes.
10ft Weatherpoof I/O cable
Just like its brother, the HD-NDI-MINI comes with a well protected 10ft/3m weatherproof cable, protecting its wires vigilantly.
Simultaneous IP Streaming
As always, simultaneously streaming of NDI®|HX, SRT, RTSP and RTMP is a given. That’s just the way the MINI rolls.
Quick Specs
- NDI|HX: NDI 5 Capable Camera
- FHD Streaming: 1080p, 1080i and 720p
- 30 cm I/O Cable: 12VDC, RJ45 & USB(settings)
- IP67 Rated: Dust and Moisture Free
Full Specs
VIDEO
Image Sensor
1/3” Progressive CMOS
Sensor Size
5.346mm x 3.003mm (16.9)
Effective Pixels
Horizontal: 1920, Vertical: 1080
Pixel Size
2.75 ?m (H) x 2.75 ?m (V)
Resolution
1080p, 1080i, 720p
Resolution Rate
1080 60p/59.94/50p/30p/29.97p/25p
24p
1080 60i/59.94i/50i
720 60p/59.94p/50p
Output
IP (NDI|HX/SRT/RTMP/RTSP)
Color Space
4:2:2 (YCbCr) 10bit
Min Illumination
0.2Lux (day), 0.1Lux (Night)
White Balance
Auto & Manual (9000 - 11,000 K)
Lens
M12 (Default 4mm HD Lens with WP CAP)
IP Protocol
UDP|IP, RTSP|RTMP, SRT, NDI|HX
PHYSICAL
Camera Control Protocol:
VISCA Over IP
Operation Temp
32°F - 104°F
Dimension 90mm x 24mm
(with default WP cap)
Weight 180g
(with default WP cap)
Power
12VDC (+9 - +15VDC) (PoE Adapter Included)
