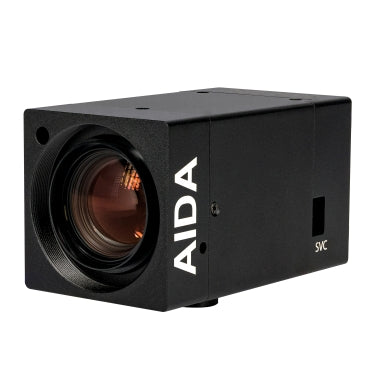

AIDA HD3G-IPC-MX10 POV Camera FullHD 3G-SDI Macro

This compact camera delivers sharp, reliable imaging with VISCA over IP for easy remote control across the network. PoE+ is supported via the included adapter cable for simplified power and data management. A 10x optical zoom provides crisp close-ups without sacrificing quality, with uncompressed 1080p60 output available through HDMI and 3G-SDI. A 49mm front thread offers added flexibility for macro lenses or ND filters when closer detail or exposure control is needed.

VIDEO
Image Sensor 1/2.8” Progressive CMOS
Effective Pixels Horizontal: 1920, Vertical: 1080
Pixel Size 2.9 ?m (H) x 2.9?m (V)
Resolution 1080p, 1080i, 720p
Resolution Rate 1080 60p/59.94/50p/30p/25p/24p
1080 60i/59.94i/50i
720 60p/59.94p/50p

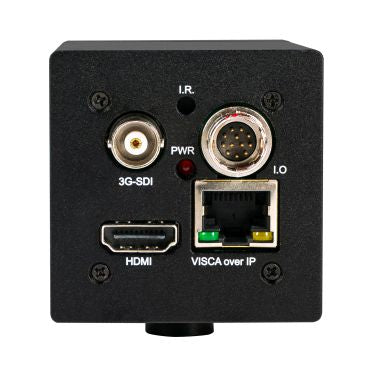

Output 3G-SDI / HDMI
Color Space 4:2:2 (YCbCr) 10bit
Min Illumination 0.2Lux (day), 0.1Lux (Night)
White Balance Auto & Manual (9000 - 11,000 K)

AUDIO
Audio Embed Embed over SDI ONLY
Input 3.5mm Line Input

STANDARD
Control Protocol Serial VISCA
VISCA over IP

PHYSICAL
Camera Control Protocol: RS485, RJ45
Operation Temp 32°F - 104°F
Dimension 95mm x 54mm x 54mm
3.74” x 2.13” x 2.13”
Weight 453g / 1 lb
Power 12VDC (+9 - +15VDC) (PoE+ with Adapter)
