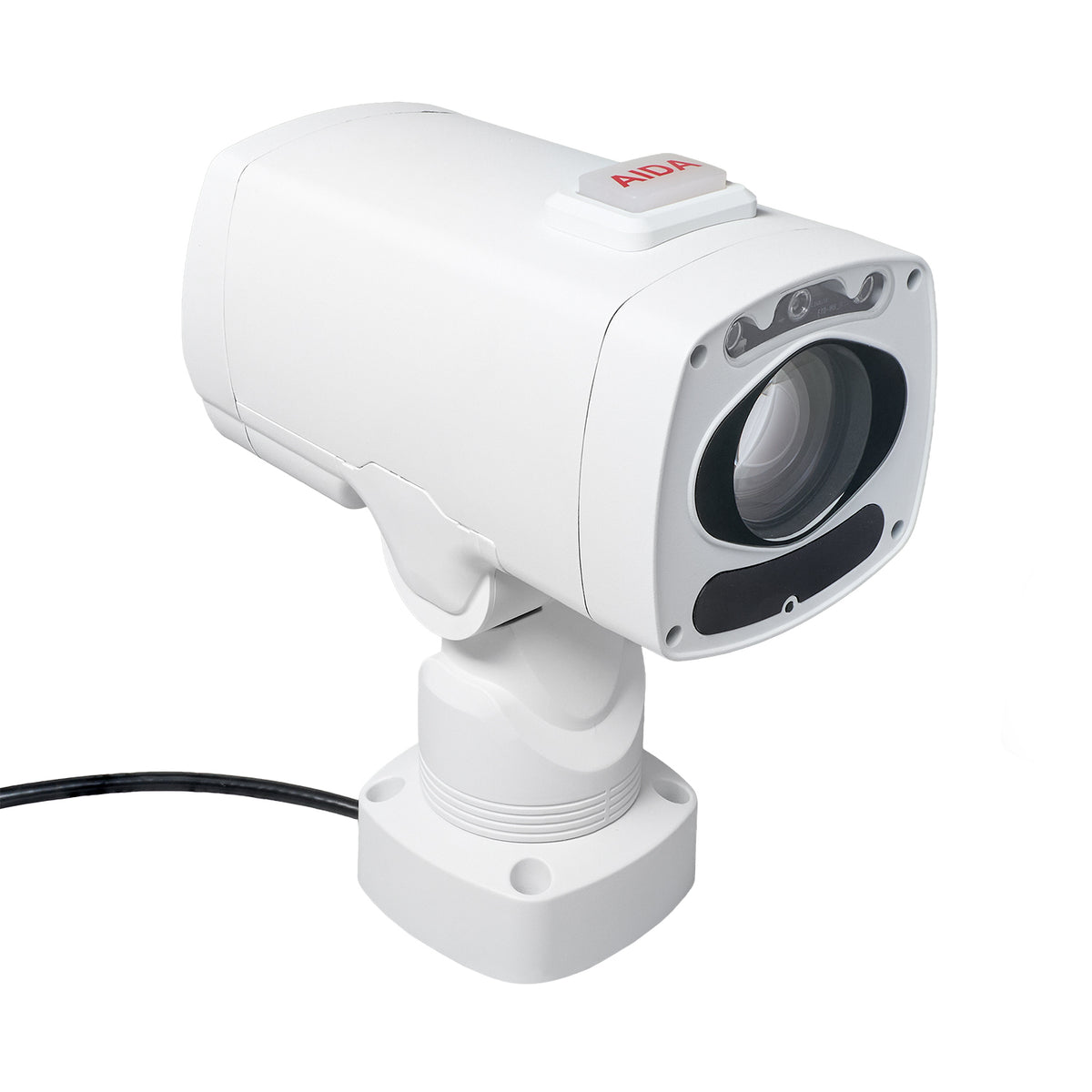

AIDA PTZ4KWP-NDI3-X30 Camera 30x nightvision IP66

Accesories:

Wall Mount Junction Box

Rounded 90° J-Pipe Wall Mount

Video

Image Sensor Size
1/1.8" Progressive CMOS
Effective Pixels
Horizontal: 1920, Vertical: 1080
Pixel Size
2.0µm (H) x 2.0 µm (V)
Resolution
1080p, 1080i, 720p
Resolution Rates
2160 60p/59.94/50p/30p/29.97p/25p/24p
1080 60p/59.94/50p/30p/29.97p/25p/24p
1080 60i/59.94i/50i
720 60p/59.94p/50p
Output
IP (NDI HX/SRT/RTMP/RTSP)
Color Space
4:2:2 (YcbCr) 10bit
Min Illumination
0.2Lux (day), 0.1Lux (night)

Pan-Tilt Motor

Pan Rotation Angle
+167° ~ -167° (334° range)
Tilt Rotation Angle
+49.5° ~ -59.5° (109° range)
Pan Rotation Speed
0.5°/s ~ 60°/s (24 steps)
Tilt Rotation Speed
0.2°/s ~ 34.2°/s (24 steps)

Optics / Audio

Lens
30X UHD Optical Zoom
Lens F-Stop
F1.35~F4.6
Lens HFOV (angle)
60° Wide, 2° Tele
Audio Input
3.5mm TRS Stereo Audio Input
Audio Embed
Over All IP Streams
Sample Rate
16/24/32 Bits

Power / Dimensions

Lens
30X UHD Optical Zoom
Lens F-Stop
F1.35~F4.6
Lens HFOV (angle)
60° Wide, 2° Tele
Audio Input
3.5mm T
