MICRO 4K POV CAMERA – Professional micro 3X Zoom POV Camera
•4K 1/1.7” Progressive Scan CMOS sensor capable of capturing up to 30fps
over 6G-SDI and HDMI
• Advanced digital imaging processor provides vivid and detailed images by
utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
• Superb motion-compensated temporal noise reduction filter for motion
video without blurring.
• SD control breakout cable with power input and RS-485 for remote
communication.
• Flawlessly relays multi-channel embedded audio via SDI.
• Perfectly suited for broadcast, pro audio/video, and security.
• Conforming with SMPTE 292M, 424M, and 2081-10.
• Versatile, compact, and rugged design with 1/4” 20 mounting on bottom.
SPECIFICATIONS
VIDEO
Image Sensor 1/2.8” Progressive CMOS
Effective Pixels Horizontal: 3840, Vertical: 2160
Pixel Size 1.85 μm (H) x 1.85μm (V)
Resolution 2160p, 1080p, 1080i, 720p
Resolution Rate 2160 30p/29.97p/25p/24p
1080 60p/59.94/50p/30p/25p/24p
1080 60i/59.94i/50i
720 60p/59.94p/50p
Output 6G-SDI / HDMI
Color Space 4:2:2 (YCbCr) 10bit
Min Illumination 0.2Lux (day), 0.1Lux (Night)
White Balance Auto & Manual (9000 - 11,000 K)
LENS
Module 20X Optical Zoom Module F1.5~F3.0
FOV: 61~3.4°
AUDIO
Audio Embed Embed over SDI ONLY
Input 3.5mm Line Input
STANDARD
Control Protocol Serial VISCA
PHYSICAL
Camera Control Protocol: RS485
Operation Temp 32°F - 104°F

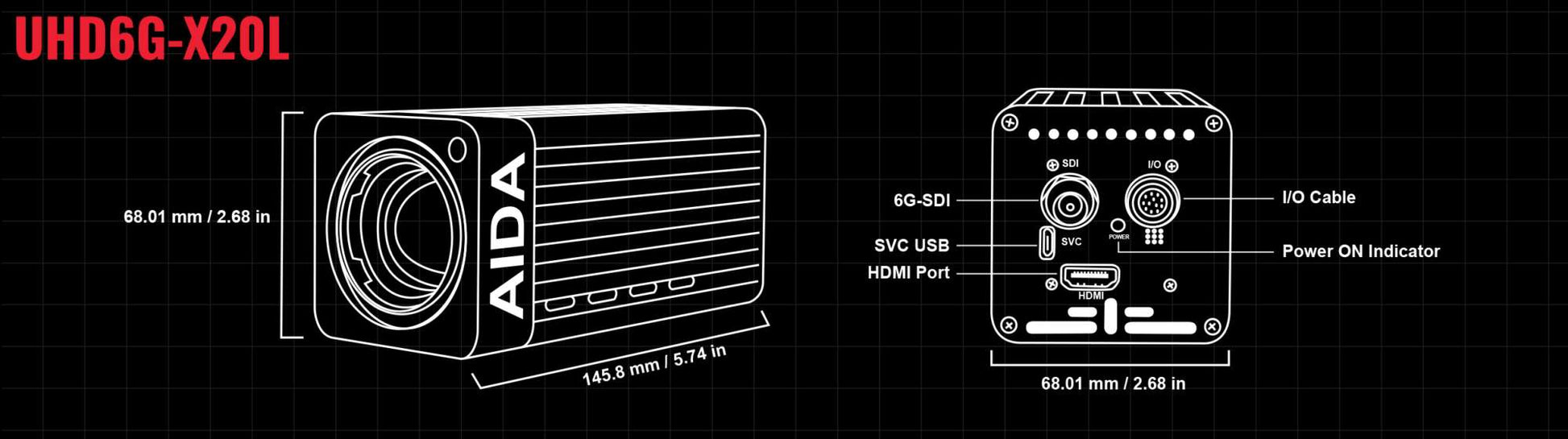

Dimension 68mm x 146mm x 68mm
2.68” x 5.74” x 2.68”
Weight 750g / 2 lb
Power 12VDC (+9 - +15VDC)
