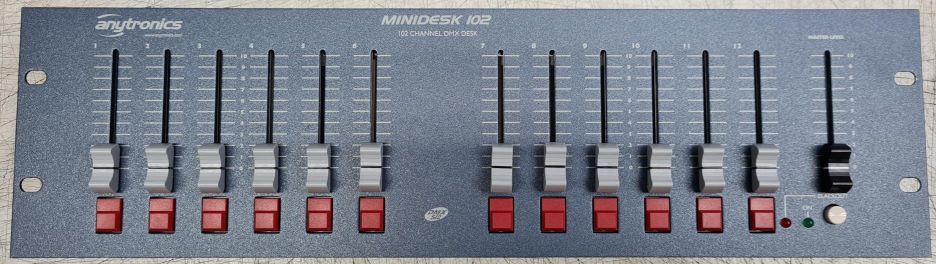

Anytronics Mini-Desk 102 Channels

Anytronics MiniDesk 102 is a portable DMX desk which will control up to 102 DMX channels.

The unit requires power from either +5V on the RJ45 connector or a
9 - 25V dc supply @75mA on the rear dc connector.

These supplies are available from any of the Anytronics architectural dimming or switching packs.

Key Features of MiniDesk 102

o Twelve metal shafted sliders for channel level control
o Master slider control
o Latching Blackout button with LED indicator
o Power indicator LED
o 10 bank select switches
o 2 bank edit buttons Up/Down, or On/Off
o RJ45 and XLR DMX output connections
o Optional rack mounting
